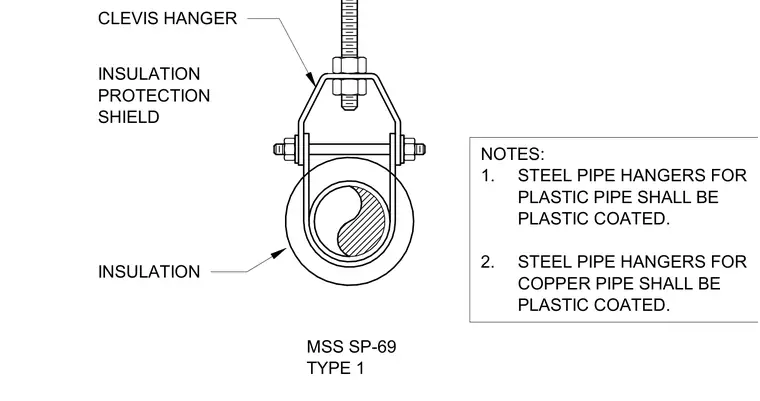

An MSS SP-69 Type 1 clevis hanger supports an insulated pipe using an insulation protection shield. The threaded rod suspension includes securing hex nuts above the clevis yoke. Notes specify that steel pipe hangers for plastic pipe and copper pipe shall be plastic coated.
INSULATION PROTECTION SHIELD MSS SP-69 TYPE 1 CLEVIS HANGER INSULATION STEEL PIPE HANGERS FOR COPPER PIPE SHALL BE PLASTIC COATED. NOTES: STEEL PIPE HANGERS FOR PLASTIC PIPE SHALL BE PLASTIC COATED. 1. 2.
