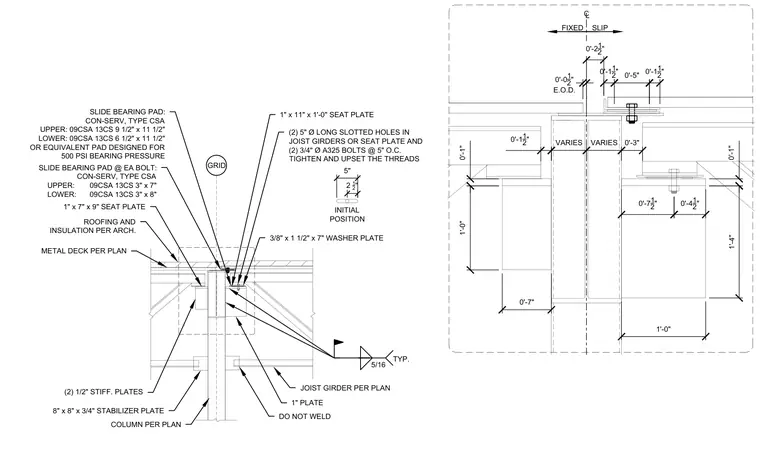

An expansion joint connection occurs at a structural steel joist girder supported by a column per plan. An 8-inch by 8-inch by 3/4-inch stabilizer plate connects to the column with two 1/2-inch stiffener plates. A 1-inch by 11-inch by 1-foot seat plate and a 1-inch by 7-inch by 9-inch seat plate support the metal deck, roofing, and insulation assembly per architectural plans. A Con-Serv Type CSA slide bearing pad designed for 500 psi bearing pressure is installed beneath the seat plate, featuring upper and lower pads measuring 9-1/2 inches by 11-1/2 inches and 6-1/2 inches by 11-1/2 inches respectively. Two 5-inch diameter long slotted holes in the joist girder or seat plate accommodate two 3/4-inch diameter A325 bolts at 5 inches on center with their threads tightened and upset. Additional slide bearing pads measuring 3 inches by 7 inches and 3 inches by 8 inches are placed at each bolt along with a 3/8-inch by 1-1/2-inch by 7-inch washer plate. A note specifies leaving the connection left unwelded to the girder, while 5/16-inch typical fillet welds are applied elsewhere as indicated.
GRID COLUMN PER PLAN 8" x 8" x 3/4" STABILIZER PLATE JOIST GIRDER PER PLAN ROOFING AND INSULATION PER ARCH. METAL DECK PER PLAN DO NOT WELD 1" x 7" x 9" SEAT PLATE (2) 1/2" STIFF. PLATES 1" x 11" x 1'-0" SEAT PLATE 1" PLATE 5/16 TYP. 3/8" x 1 1/2" x 7" WASHER PLATE SLIDE BEARING PAD: CON-SERV, TYPE CSA UPPER: 09CSA 13CS 9 1/2" x 11 1/2" LOWER: 09CSA 13CS 6 1/2" x 11 1/2" OR EQUIVALENT PAD DESIGNED FOR 500 PSI BEARING PRESSURE (2) 5" Ø LONG SLOTTED HOLES IN JOIST GIRDERS OR SEAT PLATE AND (2) 3/4" Ø A325 BOLTS @ 5" O.C. TIGHTEN AND UPSET THE THREADS SLIDE BEARING PAD @ EA BOLT: CON-SERV, TYPE CSA UPPER: 09CSA 13CS 3" x 7" LOWER: 09CSA 13CS 3" x 8" 5" 2 1 2 " INITIAL POSITION 1'-4" 1'-0" VARIES 0'-3" VARIES 0'-11 2" 0'-71 2" 0'-41 2" 0'-7" 1'-0" 0'-1" 0'-01 2" E.O.D. 0'-11 2" 0'-5" 0'-11 2" 0'-21 2" SLIP FIXED CL 0'-1"
