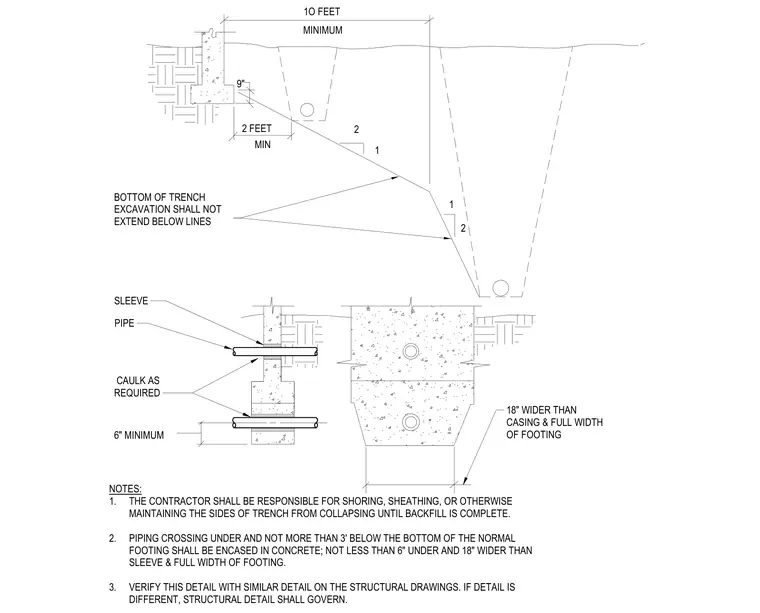

Trench excavation for utilities near structural footings requires maintaining stable soil slopes with a two-to-one slope ratio outside a ten-foot horizontal zone from the footing. Piping crossing under and within three feet of the bottom of the normal footing requires concrete encasement extending at least six inches below the sleeve and eighteen inches wider than the casing across the full width of the footing. Pipe sleeves are installed through concrete foundations with caulk applied as required around the pipe penetration.
6" MINIMUM PIPE CAULK AS REQUIRED SLEEVE BOTTOM OF TRENCH EXCAVATION SHALL NOT EXTEND BELOW LINES 2 FEET MIN 2 1 MINIMUM 1O FEET 9" 18" WIDER THAN CASING & FULL WIDTH OF FOOTING 2 1 NOTES: 1. THE CONTRACTOR SHALL BE RESPONSIBLE FOR SHORING, SHEATHING, OR OTHERWISE MAINTAINING THE SIDES OF TRENCH FROM COLLAPSING UNTIL BACKFILL IS COMPLETE. 2. PIPING CROSSING UNDER AND NOT MORE THAN 3' BELOW THE BOTTOM OF THE NORMAL FOOTING SHALL BE ENCASED IN CONCRETE; NOT LESS THAN 6" UNDER AND 18" WIDER THAN SLEEVE & FULL WIDTH OF FOOTING. 3. VERIFY THIS DETAIL WITH SIMILAR DETAIL ON THE STRUCTURAL DRAWINGS. IF DETAIL IS DIFFERENT, STRUCTURAL DETAIL SHALL GOVERN.
