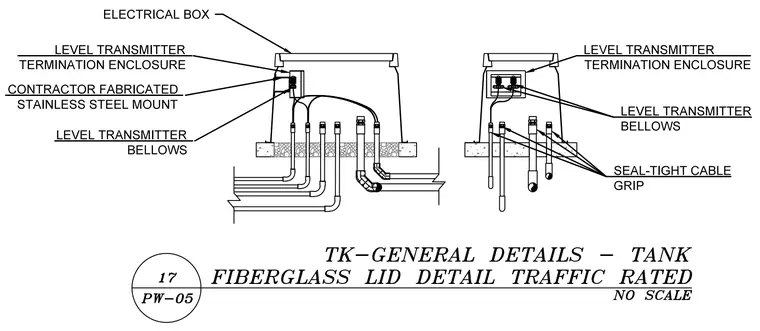

A traffic-rated fiberglass tank lid assembly features an electrical box and a contractor-fabricated stainless steel mount housing a level transmitter termination enclosure. Level transmitter bellows connect via seal-tight cable grips to conduits passing through the tank base. The setup provides secure instrumentation access and cable routing through the heavy-duty lid.
