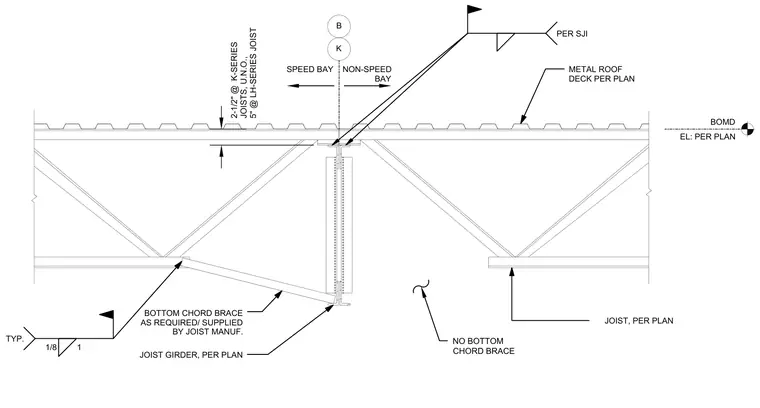

An LH-series or K-series open-web steel joist bears on a joist girder per plan beneath a metal roof deck. A bottom chord brace is supplied and required by the joist manufacturer where specified, connected with a one-eighth inch fillet weld typical. The assembly differentiates between speed bay and non-speed bay conditions regarding bottom chord bracing requirements.
METAL ROOF DECK PER PLAN BOTTOM CHORD BRACE AS REQUIRED/ SUPPLIED BY JOIST MANUF. JOIST, PER PLAN PER SJI JOIST GIRDER, PER PLAN 1/8 1 TYP. NO BOTTOM CHORD BRACE 2-1/2" @ K-SERIES JOISTS, U.N.O., 5" @ LH-SERIES JOIST BOMD EL: PER PLAN SPEED BAY NON-SPEED BAY K B
