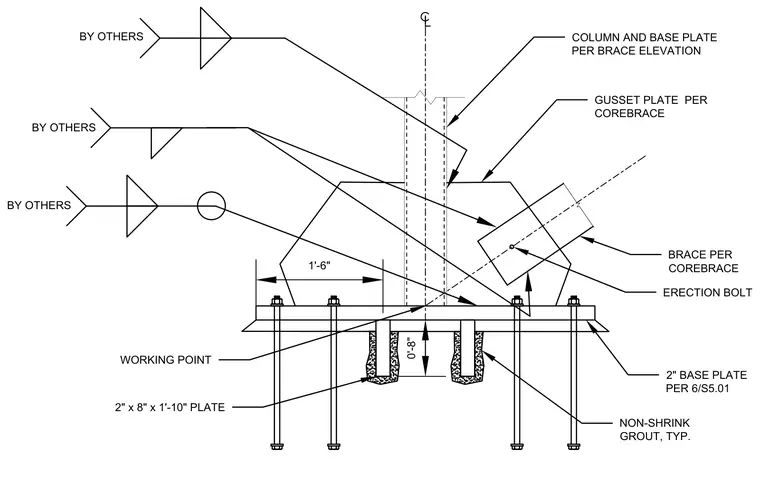

A structural steel column and base plate connect to a concrete foundation with anchor bolts and non-shrink grout. A gusset plate connects to the column and base plate to receive the structural brace, secured with an erection bolt. Additional plates and components are installed per the structural drawings and manufacturer specifications.
COLUMN AND BASE PLATE PER BRACE ELEVATION BRACE PER COREBRACE GUSSET PLATE PER COREBRACE 2" BASE PLATE PER 6/S5.01 ERECTION BOLT WORKING POINT 2" x 8" x 1'-10" PLATE 0'-8" NON-SHRINK GROUT, TYP. 1'-6" BY OTHERS BY OTHERS BY OTHERS
