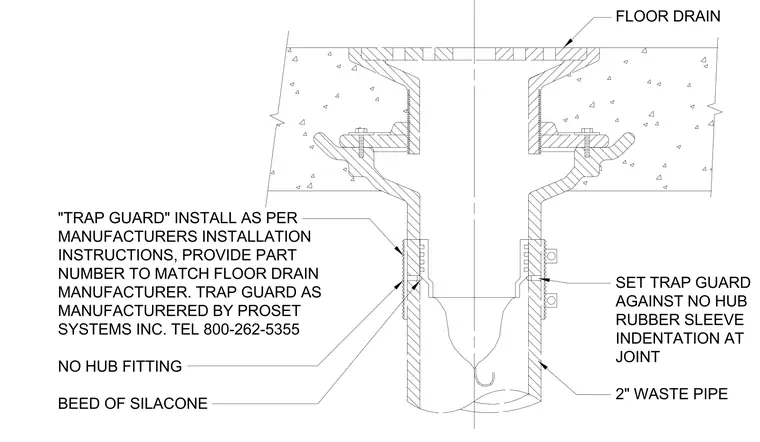

The assembly features a floor drain connected to a two-inch waste pipe utilizing a no-hub fitting and a rubber sleeve. A manufactured trap guard is installed inside the waste pipe per the manufacturer's installation instructions, with the part number matched to the specific floor drain manufacturer. The trap guard is set against the no-hub rubber sleeve indentation at the joint, supplemented by a bead of silicone at the connection.
FLOOR DRAIN SET TRAP GUARD AGAINST NO HUB RUBBER SLEEVE INDENTATION AT JOINT 2" WASTE PIPE "TRAP GUARD" INSTALL AS PER MANUFACTURERS INSTALLATION INSTRUCTIONS, PROVIDE PART NUMBER TO MATCH FLOOR DRAIN MANUFACTURER. TRAP GUARD AS MANUFACTURERED BY PROSET SYSTEMS INC. TEL 800-262-5355 NO HUB FITTING BEED OF SILACONE
