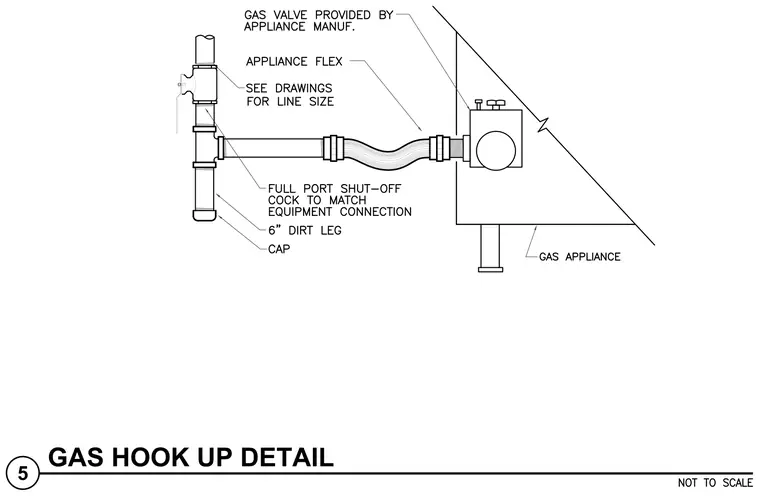

This gas appliance connection assembly features a supply line sized per the drawings with a full port shut-off cock matching the equipment connection. A six-inch dirt leg with a threaded cap terminates the vertical drop before the branch line extends to an appliance flex connector. The appliance is fitted with a gas valve provided by the manufacturer.
