An adjustable strainer floor drain is installed in a concrete finish floor of two-pour construction. The assembly incorporates a structural slab below a topping slab, with a flashing membrane integrated between the pours via a Wejloc invertible flashing collar. The drain body connects to a vertical drain line using either a threaded outlet or a caulked outlet.

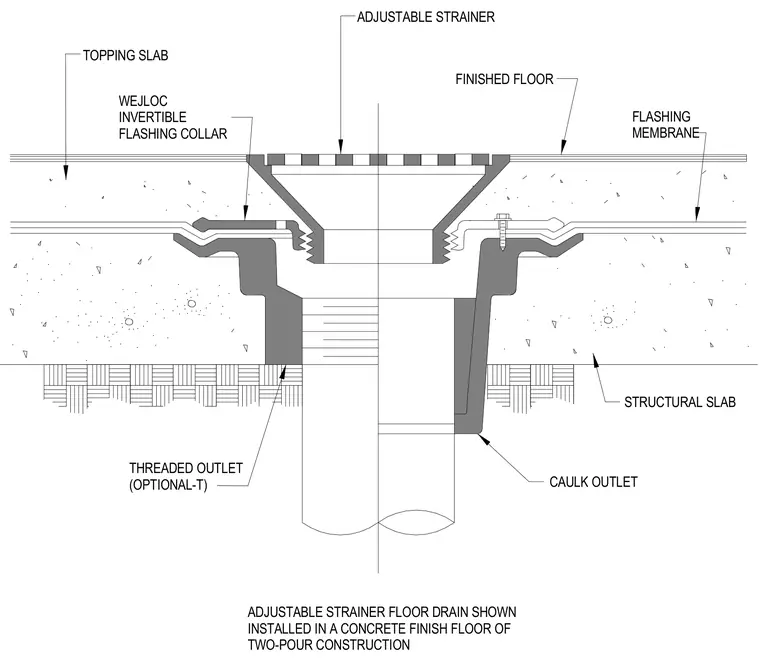

FLASHING MEMBRANE STRUCTURAL SLAB CAULK OUTLET FINISHED FLOOR ADJUSTABLE STRAINER WEJLOC INVERTIBLE FLASHING COLLAR TOPPING SLAB THREADED OUTLET (OPTIONAL-T) ADJUSTABLE STRAINER FLOOR DRAIN SHOWN INSTALLED IN A CONCRETE FINISH FLOOR OF TWO-POUR CONSTRUCTION
