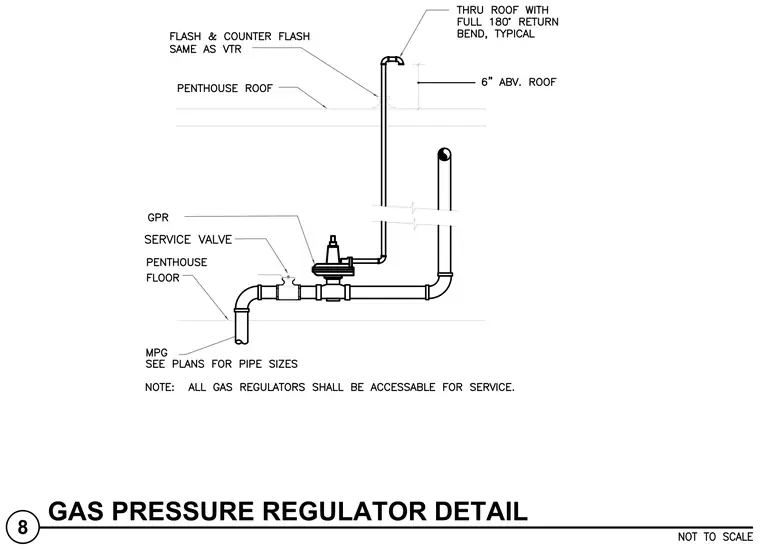

A medium pressure gas line enters through the penthouse floor, connects to a service valve, and feeds into a gas pressure regulator. The regulator vent line rises vertically through the penthouse roof, terminating six inches above the roof with a full one hundred eighty degree return bend. Flashing and counter flashing match the vent through roof standard details. All gas regulators remain accessible for service.
