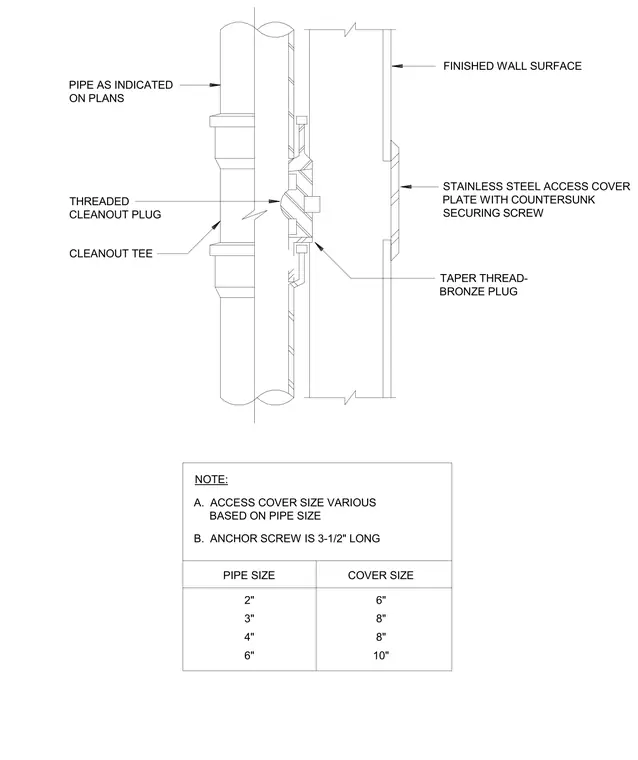

The assembly consists of a cleanout tee connected to the pipe as indicated on plans, fitted with a threaded cleanout plug and a taper-thread bronze plug. A stainless steel access cover plate with a countersunk securing screw finishes flush with the finished wall surface. The anchor screw is 3-1/2 inches long, and access cover sizes vary based on pipe size according to the accompanying schedule.
FINISHED WALL SURFACE A. ACCESS COVER SIZE VARIOUS NOTE: BASED ON PIPE SIZE PIPE SIZE COVER SIZE 2" 6" 3" 8" 4" 8" 6" 10" B. ANCHOR SCREW IS 3-1/2" LONG STAINLESS STEEL ACCESS COVER PLATE WITH COUNTERSUNK SECURING SCREW TAPER THREAD- BRONZE PLUG PIPE AS INDICATED ON PLANS THREADED CLEANOUT PLUG CLEANOUT TEE
