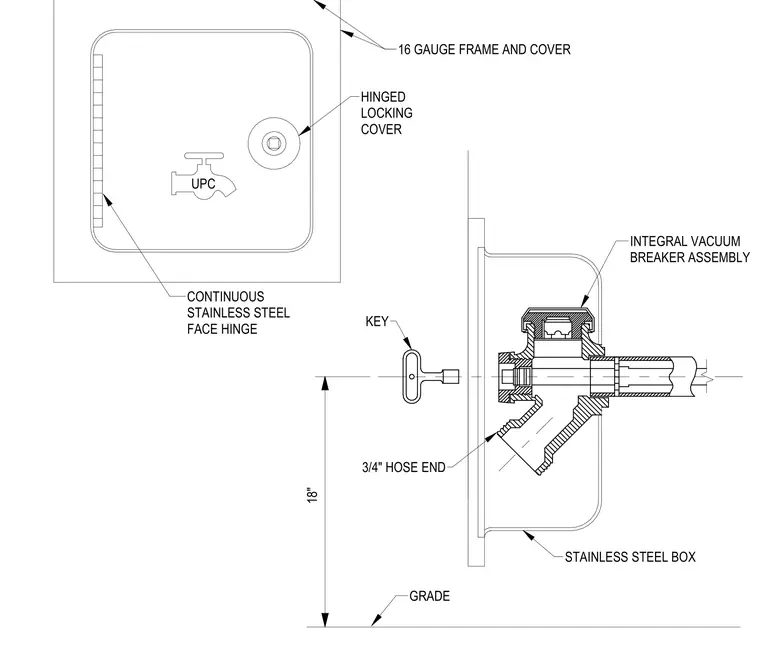

This recessed wall hydrant assembly is housed within a stainless steel box and protected by a 16-gauge frame and cover. The cover includes a continuous stainless steel face hinge and a hinged locking mechanism operated by a key. The hydrant features an integral vacuum breaker assembly and a 3/4-inch hose end connection. The unit is installed at a height of 18 inches above finished grade.
