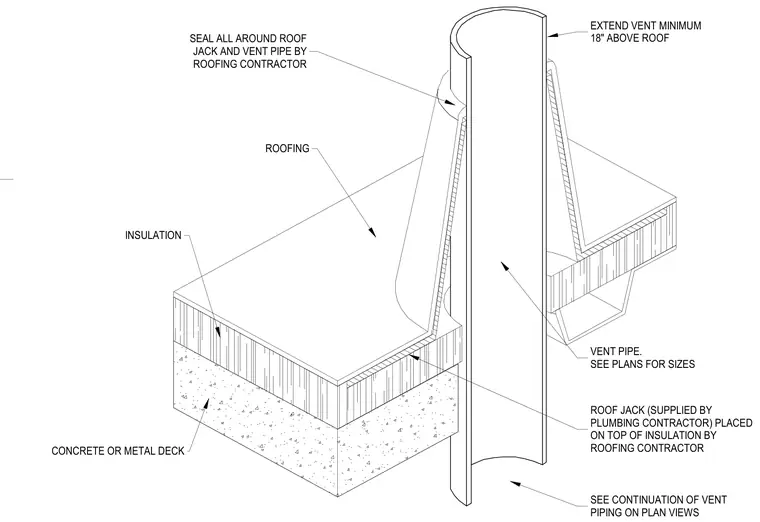

A vent pipe penetrates a concrete or metal deck roof assembly layered with insulation and roofing. A roof jack supplied by the plumbing contractor is placed on top of the insulation and sealed all around the vent pipe by the roofing contractor. The vent pipe extends a minimum of 18 inches above the roof.
ROOFING SEAL ALL AROUND ROOF JACK AND VENT PIPE BY ROOFING CONTRACTOR INSULATION CONCRETE OR METAL DECK VENT PIPE. SEE PLANS FOR SIZES ROOF JACK (SUPPLIED BY PLUMBING CONTRACTOR) PLACED ON TOP OF INSULATION BY ROOFING CONTRACTOR SEE CONTINUATION OF VENT PIPING ON PLAN VIEWS EXTEND VENT MINIMUM 18" ABOVE ROOF
