Reception Desk Millwork Section and Steel Support Detail

Materials

Steel Timber / Wood Metal (misc.)

Elements

Doors Decks Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Embed Plate

About this detail

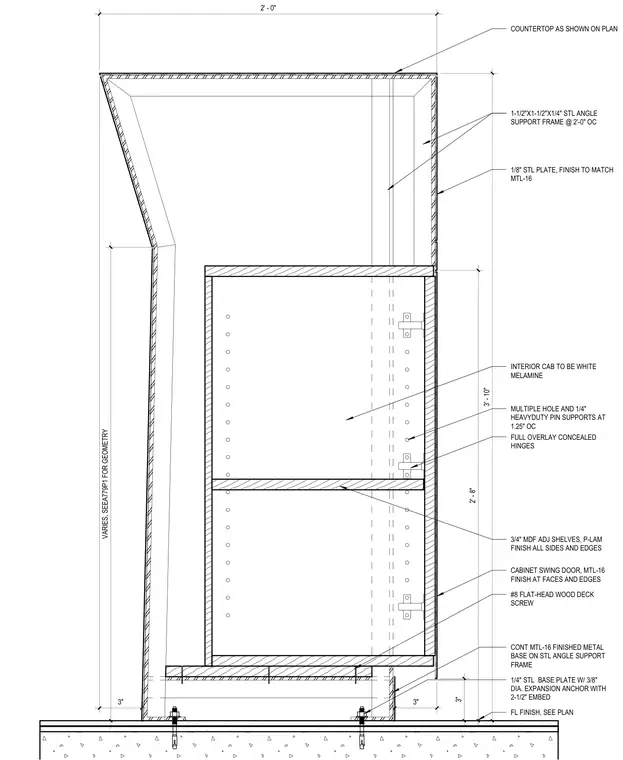

A vertical section of a custom reception desk assembly anchors to the structural floor slab. The desk is framed with 1-1/2 inch by 1-1/2 inch by 1/4 inch steel angles spaced at 2 feet on center, clad in 1/8 inch steel plate with a finished metal base, and topped with a surface detailed per the architectural floor plan. The interior casework consists of white melamine cabinets featuring 3/4 inch medium-density fiberboard adjustable shelves with plastic laminate finish on all sides and edges, supported by 1/4 inch heavy-duty pins spaced at 1.25 inches on center. Cabinet swing doors include full-overlay concealed hinges and are secured with number 8 flat-head wood deck screws. The entire steel support frame is anchored to the concrete slab using a 1/4 inch steel base plate secured with 3/8 inch diameter expansion anchors having a 2-1/2 inch embedment.
