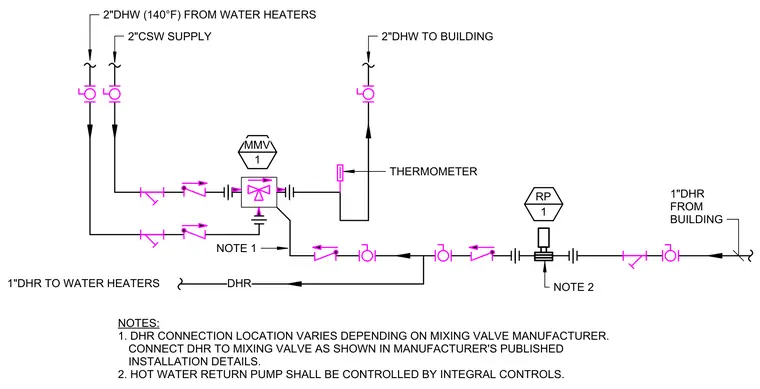

A master mixing valve receives a two-inch domestic hot water supply at 140 degrees Fahrenheit from the water heaters alongside a two-inch cold water supply line. The assembly incorporates check valves, strainers, unions, and thermometers on the distribution and return piping. A one-inch domestic hot water return line connects back to the water heaters, with the domestic hot water return connection location varying per the manufacturer. A reduced pressure backflow preventer and a hot water return pump controlled by integral controls complete the piping schematic.
1. 2. NOTES: DHR CONNECTION LOCATION VARIES DEPENDING ON MIXING VALVE MANUFACTURER. CONNECT DHR TO MIXING VALVE AS SHOWN IN MANUFACTURER'S PUBLISHED INSTALLATION DETAILS. HOT WATER RETURN PUMP SHALL BE CONTROLLED BY INTEGRAL CONTROLS. 1"DHR FROM BUILDING 2"DHW TO BUILDING 2"CSW SUPPLY 2"DHW (140°F) FROM WATER HEATERS 1"DHR TO WATER HEATERS MMV 1 RP 1 THERMOMETER DHR NOTE 2 NOTE 1
