Structural · P-3DDRS

Loading Dock Pit and Grade Beam Detail

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Roofs Floors / Slabs Foundations / Footings Drainage Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

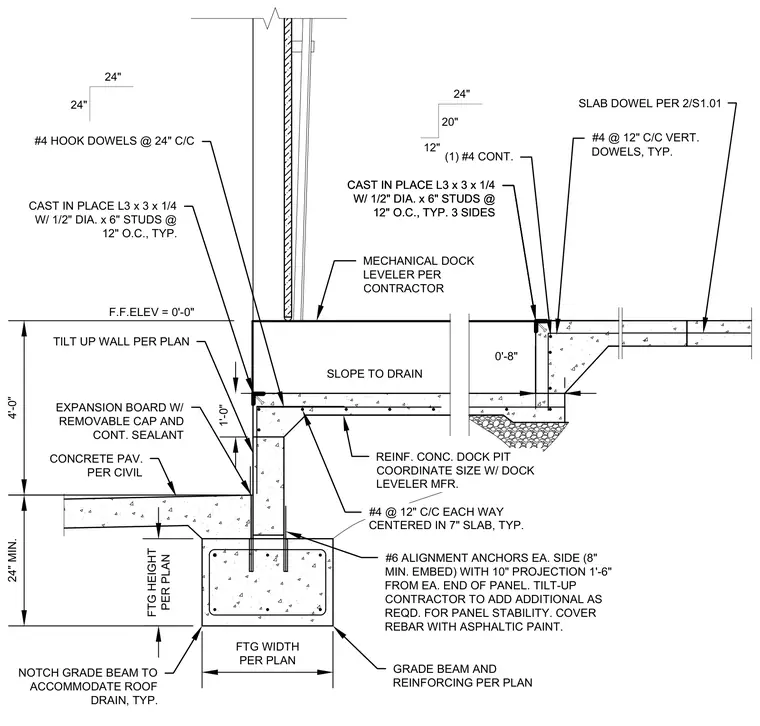

A reinforced concrete loading dock pit is supported by a cast-in-place grade beam and footing sized per plan. The assembly features a mechanical dock leveler, a concrete slab with number four reinforcing bars at twelve inches center-to-center each way, and expansion joints with removable caps and continuous sealant. Cast-in angles measuring three by three by one-quarter inches with half-inch diameter by six-inch studs at twelve inches on center are embedded at three sides. Number six alignment anchors with eight-inch minimum embedment and ten-inch projection are detailed at each side of the tilt-up wall panel. Vertical and hook dowels tie the foundation elements together, with the grade beam notched to accommodate a roof drain.
