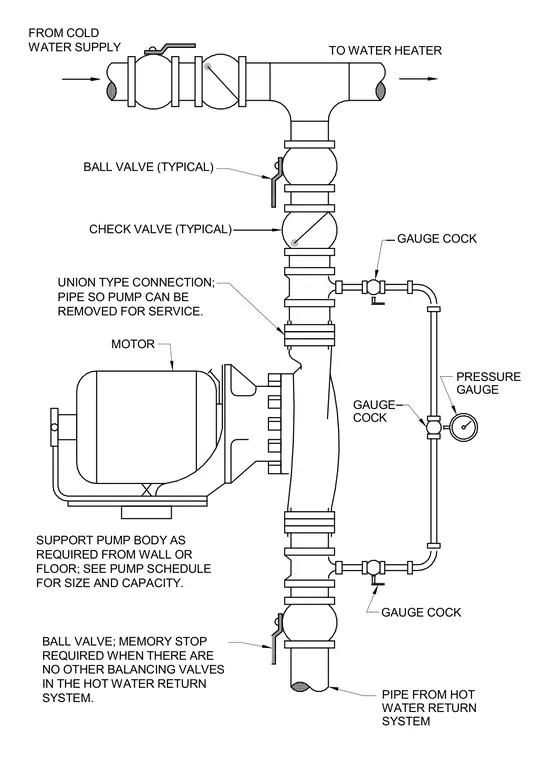

An inline recirculation pump assembly connects to the domestic hot water return system and cold water supply piping. The pump motor and body are supported from the adjacent wall or floor as required. Union type connections are installed to allow the pump to be removed easily for service. Ball valves and check valves are placed around the pump, with a memory stop valve utilized when no other balancing valves are present in the hot water return system. Gauge cocks and a pressure gauge are piped across the assembly for system monitoring.
WATER SUPPLY BALL VALVE (TYPICAL) CHECK VALVE (TYPICAL) FROM COLD TO WATER HEATER REMOVED FOR SERVICE. FOR SIZE AND CAPACITY. SUPPORT PUMP BODY AS REQUIRED FROM WALL OR FLOOR; SEE PUMP SCHEDULE BALL VALVE; MEMORY STOP IN THE HOT WATER RETURN NO OTHER BALANCING VALVES REQUIRED WHEN THERE ARE UNION TYPE CONNECTION; MOTOR PIPE SO PUMP CAN BE SYSTEM. PIPE FROM HOT SYSTEM WATER RETURN GAUGE COCK PRESSURE GAUGE COCK GAUGE GAUGE COCK
