Structural · P-39H45

Anchor Rod Details at Concrete Foundations

Materials

Concrete Steel

Elements

Bracing Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection Bolted Connection

About this detail

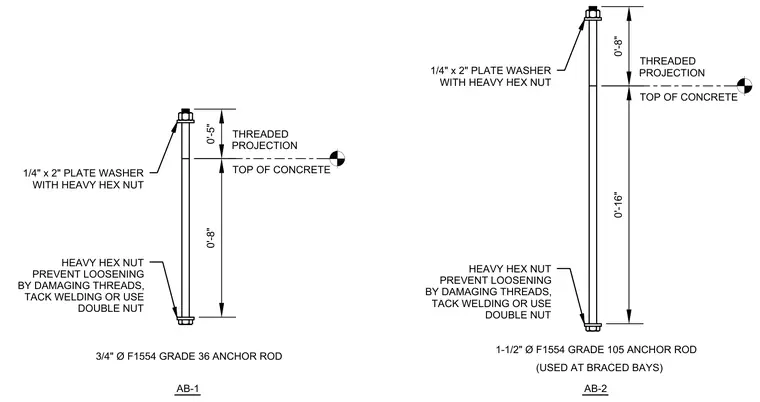

Anchor rod detail AB-1 consists of a 3/4-inch diameter ASTM F1554 Grade 36 anchor rod with an eight-inch embedment and a five-inch threaded projection above the top of concrete. It is topped with a 1/4-inch by 2-inch plate washer and heavy hex nut, with a heavy hex nut at the bottom secured against loosening by damaging threads, tack welding, or using a double nut. Anchor rod detail AB-2, used at braced bays, features a 1-1/2-inch diameter ASTM F1554 Grade 105 anchor rod with a 16-inch embedment and an eight-inch threaded projection above the top of concrete, similarly equipped with a plate washer and locking heavy hex nuts.
