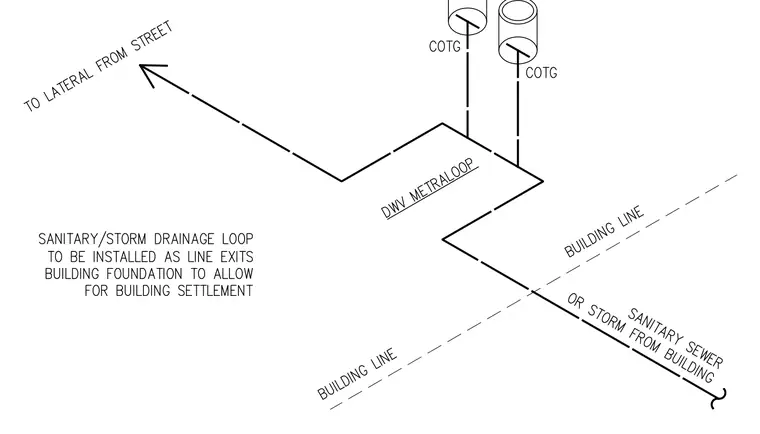

A DWV Metraloop is installed on the sanitary or storm drainage line as it exits the building foundation. The offset loop configuration provides flexibility to allow for differential building settlement and seismic displacement. Cleanouts to grade are positioned on the vertical risers upstream of the loop. The piping routes outward across the building line toward the lateral connection from the street.
