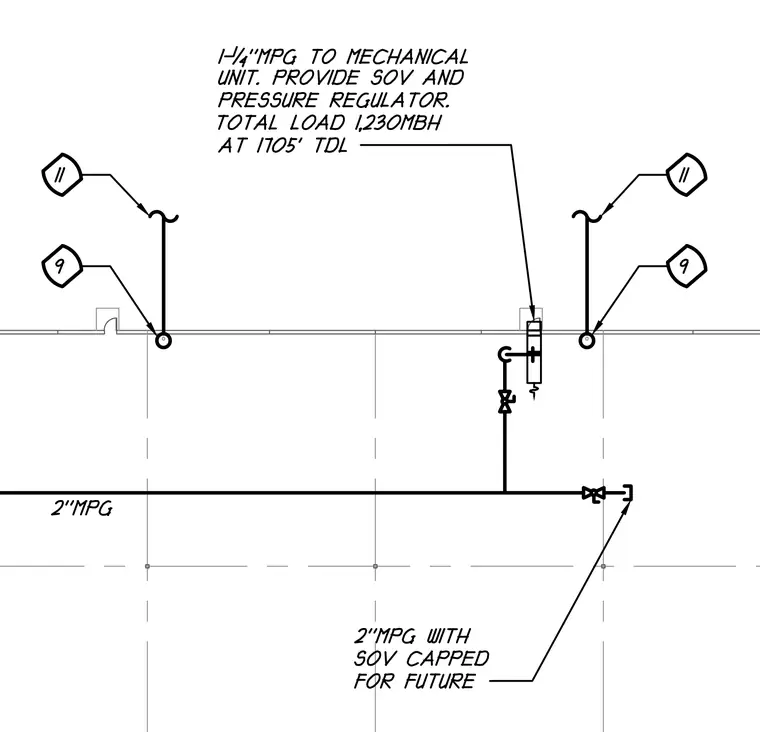

A one-and-quarter-inch medium pressure gas line connects to the mechanical unit with a solenoid valve and pressure regulator for a total load of one thousand two hundred thirty MBH at one thousand seven hundred five feet total developed length. The main branch consists of a two-inch medium pressure gas pipe equipped with a shut-off valve and capped for future extension.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
