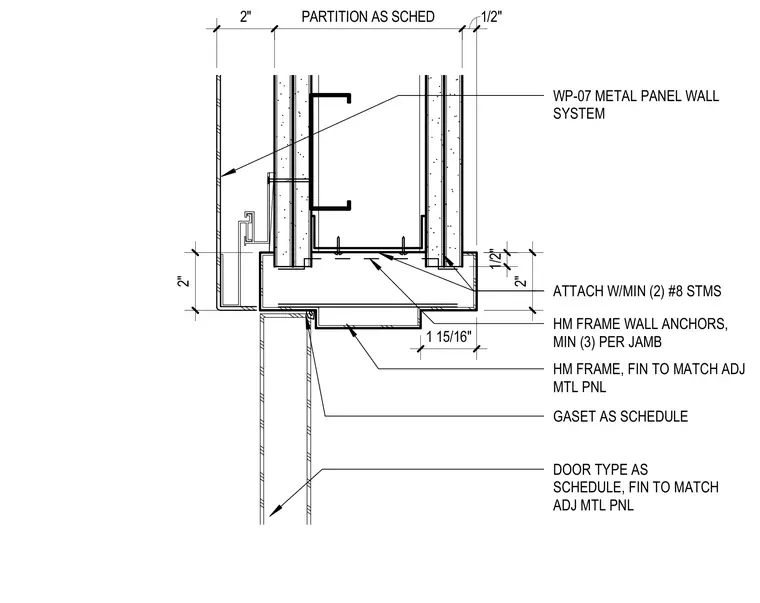

The assembly features a hollow metal door frame set within a framed partition and finished to match the adjacent WP-07 metal panel wall system. A gasket as scheduled is installed at the frame junction. The door frame is secured with a minimum of three wall anchors per jamb and attached using a minimum of two number 8 sheet metal screws as scheduled.
HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME, FIN TO MATCH ADJ MTL PNL ATTACH W/MIN (2) #8 STMS GASET AS SCHEDULE DOOR TYPE AS SCHEDULE, FIN TO MATCH ADJ MTL PNL WP-07 METAL PANEL WALL SYSTEM 1/2" 2" 2" PARTITION AS SCHED 1/2" 2" 1 15/16"
