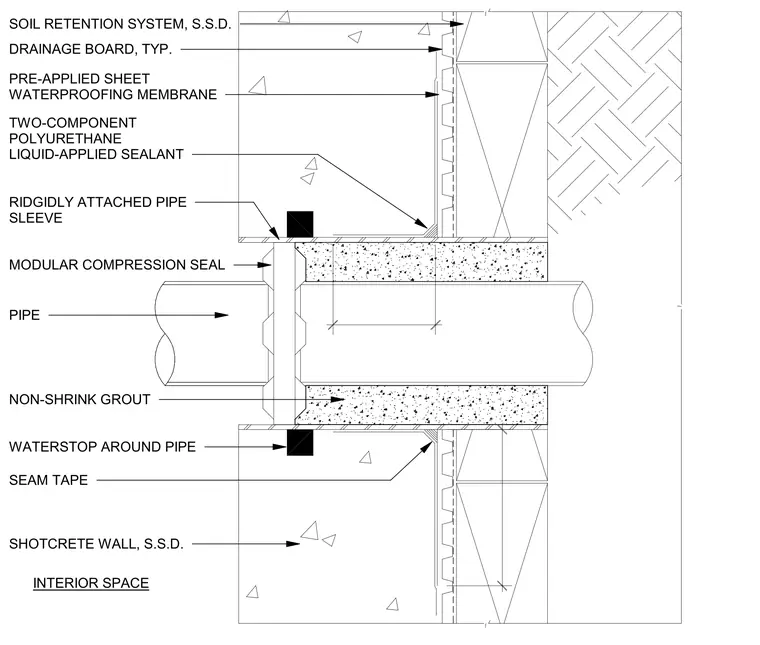

A utility pipe penetrates a shotcrete wall through a rigidly attached pipe sleeve embedded with non-shrink grout. A modular compression seal fits within the annular space between the pipe and the sleeve. A waterstop is positioned around the pipe on the interior side, sealed with a two-component polyurethane liquid-applied sealant. The exterior side of the wall features a pre-applied sheet waterproofing membrane backed by a drainage board and soil retention system, with seam tape securing the membrane joints.
SOIL RETENTION SYSTEM, S.S.D. DRAINAGE BOARD, TYP. PRE-APPLIED SHEET WATERPROOFING MEMBRANE TWO-COMPONENT POLYURETHANE LIQUID-APPLIED SEALANT RIDGIDLY ATTACHED PIPE SLEEVE MODULAR COMPRESSION SEAL PIPE NON-SHRINK GROUT WATERSTOP AROUND PIPE SEAM TAPE SHOTCRETE WALL, S.S.D. INTERIOR SPACE
