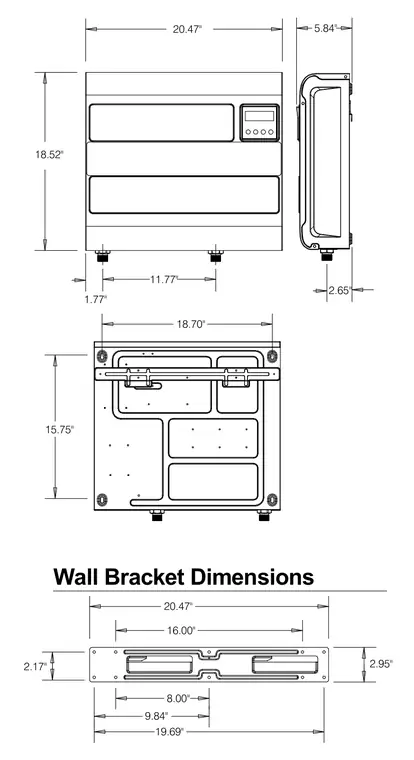

Front and side views establish overall cabinet dimensions of 20.47 inches wide by 18.52 inches high, with a depth of 5.84 inches. A separate rear mounting bracket detail provides hole centers and spacing measurements spanning 19.69 inches overall, with interior mounting slots positioned at 8.00 inches and 9.84 inches.
Wall Bracket Dimensions 20.47" 18.52" 5.84" 1.77" 11.77" 18.70" 15.75" 2.65" 20.47" 16.00" 8.00" 19.69" 9.84" 2.17" 2.95"
