The heat pump water heater assembly connects to the domestic water supply through a water shut-off valve and includes a thermal expansion tank. Automatic cold water shut-off valves control water entry, while a temperature and pressure relief valve routes discharge to an approved receptor. The unit features upper and lower elements with an energy control cut-off, alongside a condensate drain line and a leak detection sensor positioned inside a drain pan connected to a floor sink via a discharge pipe. Electrical power connects through a junction box with a one-half-inch conduit opening. If copper piping is used, unions must be dielectric at the inlet and outlet.

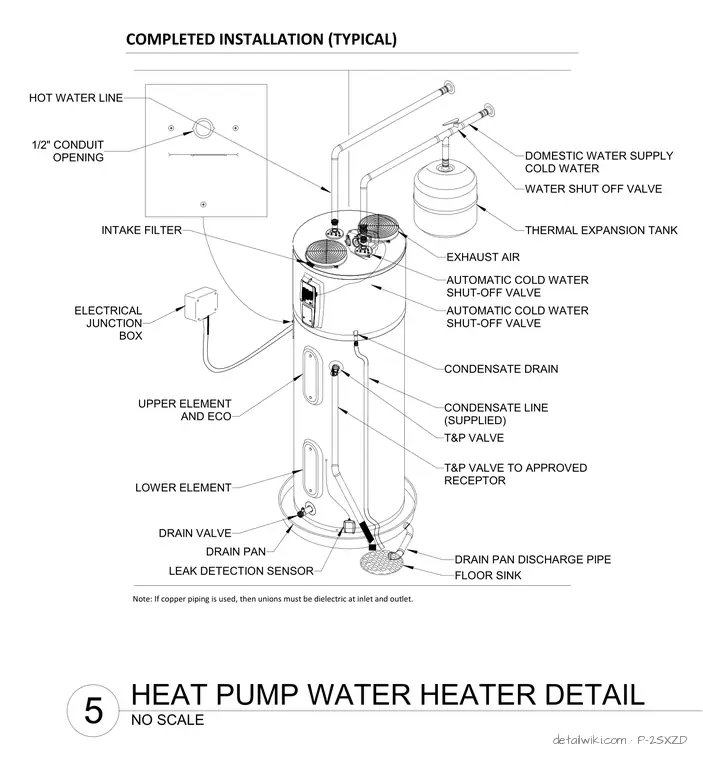

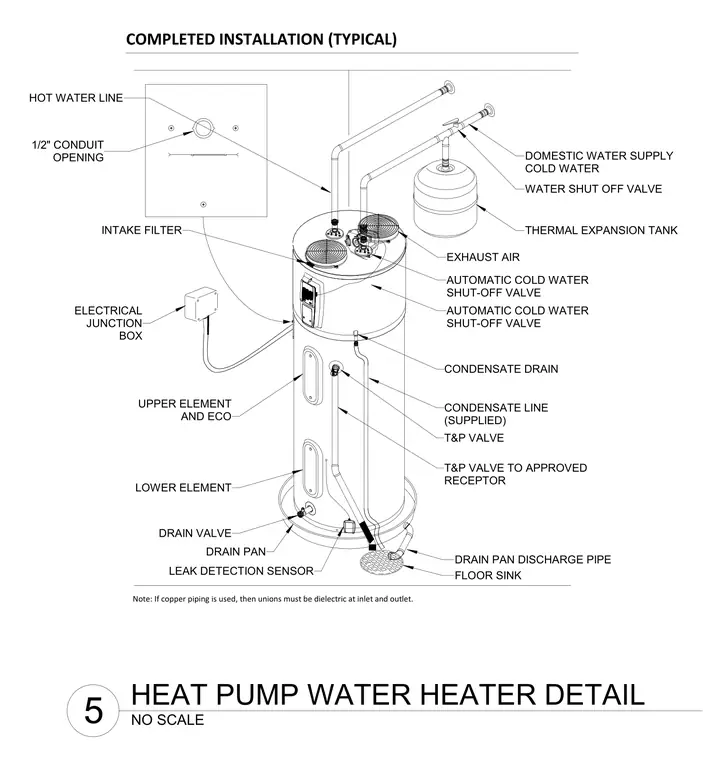

COMPLETED INSTALLATION (TYPICAL) Quick Releas eto remove valve body Note: If copper piping is used, then unions must be dielectric at inlet and outlet. EXHAUST AIR AUTOMATIC COLD WATER SHUT-OFF VALVE AUTOMATIC COLD WATER SHUT-OFF VALVE FLOOR SINK DRAIN PAN DISCHARGE PIPE LEAK DETECTION SENSOR DRAIN PAN DRAIN VALVE LOWER ELEMENT UPPER ELEMENT AND ECO CONDENSATE DRAIN CONDENSATE LINE (SUPPLIED) T&P VALVE T&P VALVE TO APPROVED RECEPTOR ELECTRICAL JUNCTION BOX 1/2" CONDUIT OPENING HOT WATER LINE INTAKE FILTER THERMAL EXPANSION TANK DOMESTIC WATER SUPPLY COLD WATER WATER SHUT OFF VALVE NO SCALE 5 HEAT PUMP WATER HEATER DETAIL
