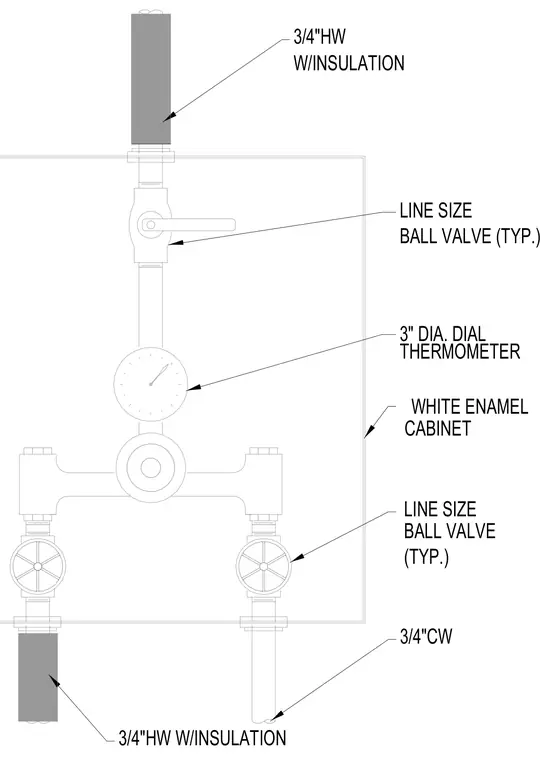

A thermostatic mixing valve is housed inside a white enamel cabinet. The assembly connects to three-quarter-inch cold water and hot water lines, with the hot water lines featuring pipe insulation. Line-size typical ball valves are installed on the supply lines for isolation. A three-inch diameter dial thermometer monitors the mixed water temperature.
3" DIA. DIAL LINE SIZE CABINET WHITE ENAMEL THERMOMETER BALL VALVE LINE SIZE (TYP.) BALL VALVE (TYP.) 3/4"CW 3/4"HW 3/4"HW W/INSULATION W/INSULATION
