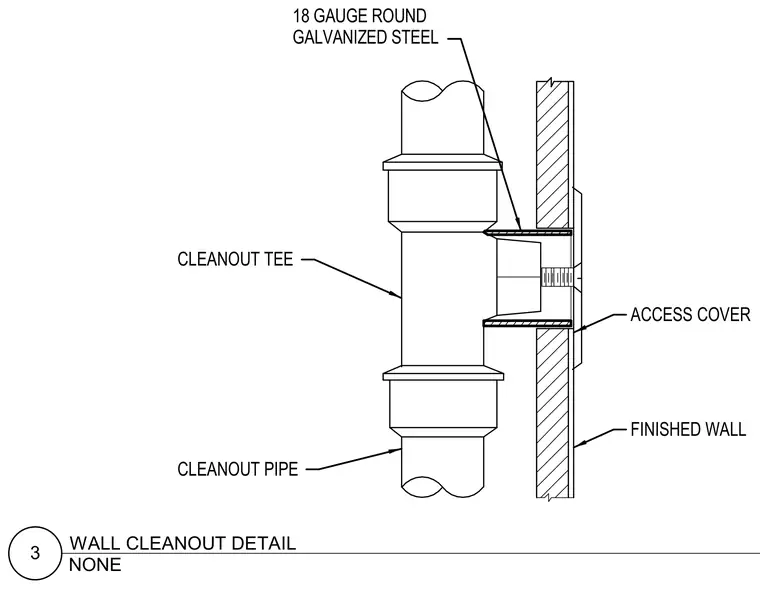

A plumbing wall cleanout assembly integrated into a finished wall. The system consists of a cleanout pipe connected to a cleanout tee, providing access through the wall framing. An eighteen-gauge round galvanized steel sleeve extends through the wall to a flush access cover secured on the room side.
FINISHED WALL ACCESS COVER CLEANOUT PIPE CLEANOUT TEE 18 GAUGE ROUND GALVANIZED STEEL NONE 3 WALL CLEANOUT DETAIL
