Steam Piping Drip Leg and Trap Details

Materials

Connections

About this detail

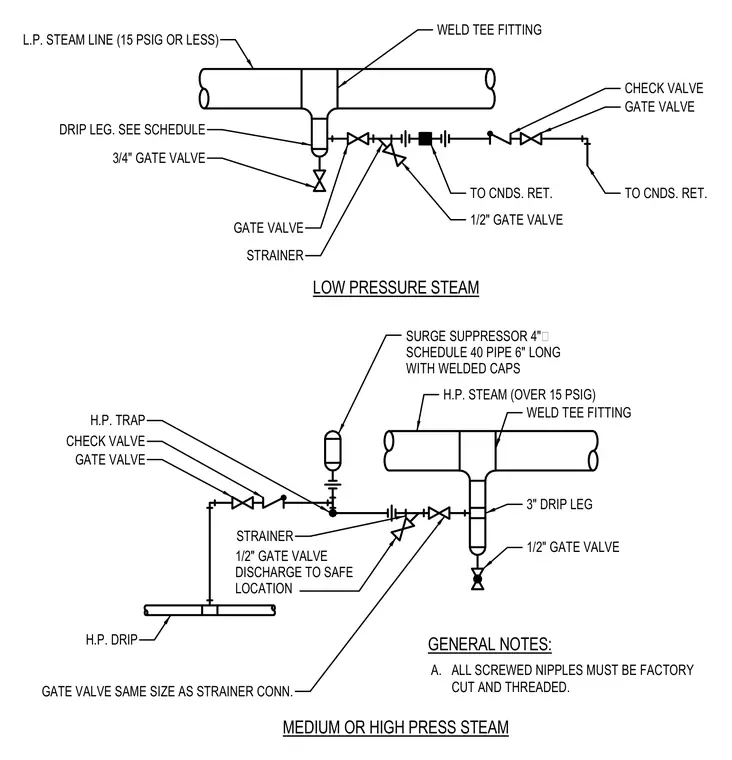

Low pressure and high pressure steam line drip leg configurations complete with weld tee fittings, strainers, gate valves, check valves, and condensate returns. The low pressure steam line features a welded tee fitting connected to a drip leg, a three-quarter-inch gate valve, a strainer, and subsequent gate and check valves leading to the condensate return. The high pressure steam assembly incorporates a weld tee fitting, a three-inch drip leg with a half-inch gate valve, a surge suppressor made from a four-inch diameter schedule forty pipe six inches long with welded caps, a high pressure trap, and a discharge to a safe location. All factory cut and threaded screwed nipples are required for proper installation.
