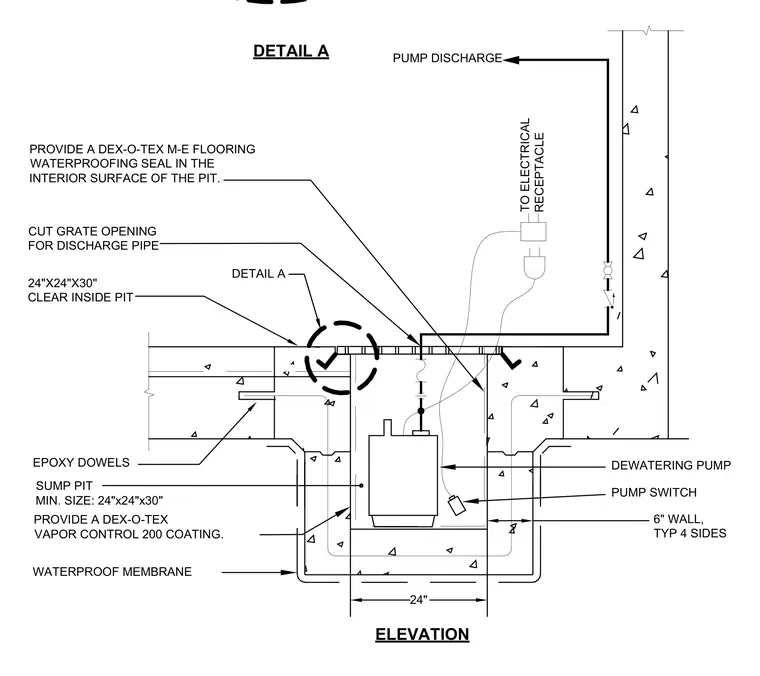

The assembly consists of a concrete sump pit with a minimum inside dimension of twenty-four by twenty-four by thirty inches and six-inch thick walls typical on four sides. A dewatering pump with a pump switch is housed inside the pit, connected to an electrical receptacle and a pump discharge pipe. The interior surfaces are coated with a vapor control coating and a waterproof flooring seal, backed by an exterior waterproof membrane. Epoxy dowels tie the sump pit structure into the surrounding concrete slab.
DETAIL A ELEVATION WATERPROOF MEMBRANE EPOXY DOWELS 6" WALL, TYP 4 SIDES 24" PUMP DISCHARGE PUMP SWITCH SUMP PIT MIN. SIZE: 24"x24"x30" TO ELECTRICAL RECEPTACLE DEWATERING PUMP PROVIDE A DEX-O-TEX VAPOR CONTROL 200 COATING. PROVIDE A DEX-O-TEX M-E FLOORING WATERPROOFING SEAL IN THE INTERIOR SURFACE OF THE PIT. CUT GRATE OPENING FOR DISCHARGE PIPE 24"X24"X30" CLEAR INSIDE PIT DETAIL A
