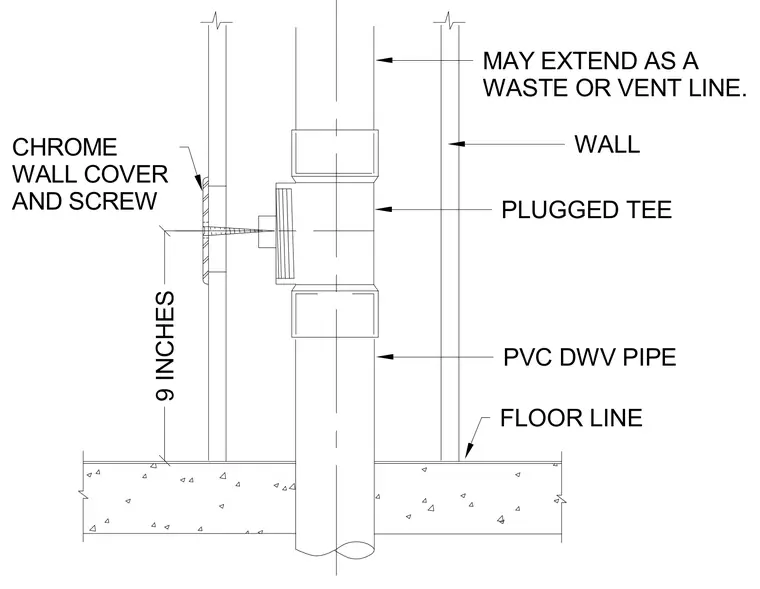

A PVC DWV pipe runs vertically through the floor line, featuring a plugged tee fitting set within the wall cavity. A chrome wall cover and screw conceal the access plug, positioned nine inches above the finished floor line. The vertical stack may extend upwards as either a waste or a vent line.
9 INCHES MAY EXTEND AS A WASTE OR VENT LINE. WALL PLUGGED TEE PVC DWV PIPE FLOOR LINE CHROME WALL COVER AND SCREW
