Shower Drain Detail

Materials

Elements

Floors / Slabs Waterproofing / Flashing Drainage Connections / Plates

About this detail

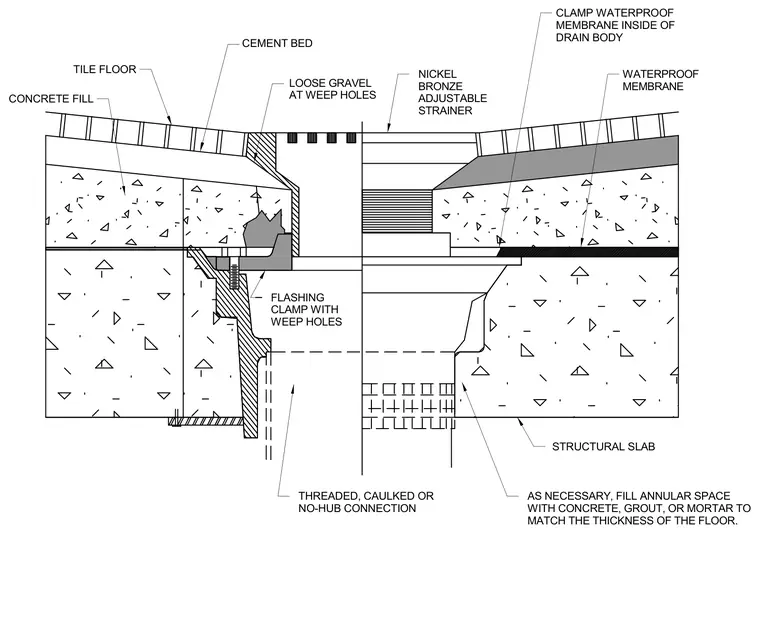

A nickel bronze adjustable strainer sits flush with the finished tile floor, supported by a cement bed over a concrete fill slope. A waterproof membrane extends beneath the tile assembly and is clamped inside the drain body with a flashing clamp featuring weep holes surrounded by loose gravel. The drain body connects to the plumbing below via a threaded, caulked, or no-hub connection. The annular space around the drain body is filled with concrete, grout, or mortar as necessary to match the floor thickness.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
