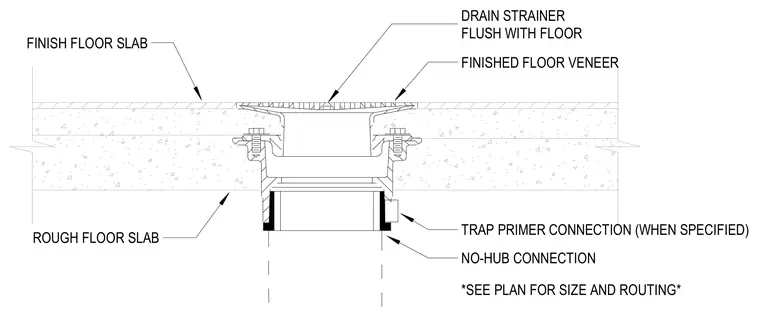

The drain strainer is set flush with the floor finish and finished floor veneer over the finish floor slab and rough floor slab. The drain body connects below the slab via a no-hub connection and includes an optional trap primer connection when specified, with size and routing sized per plan.
DRAIN STRAINER FLUSH WITH FLOOR FINISH FLOOR SLAB *SEE PLAN FOR SIZE AND ROUTING* NO-HUB CONNECTION ROUGH FLOOR SLAB FINISHED FLOOR VENEER TRAP PRIMER CONNECTION (WHEN SPECIFIED)
