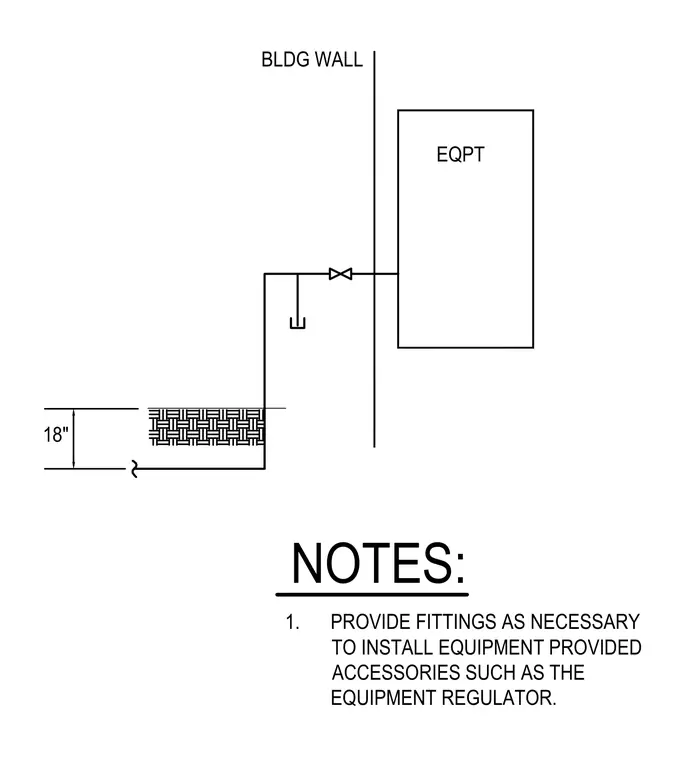

Equipment is mounted adjacent to a building wall with associated piping and fittings. The installation requires providing necessary fittings to accommodate equipment-provided accessories such as an equipment regulator. Piping is arranged with an eighteen-inch vertical clearance dimension relative to the finished grade or floor line.
BLDG WALL EQPT 18" NOTES: 1. PROVIDE FITTINGS AS NECESSARY TO INSTALL EQUIPMENT PROVIDED ACCESSORIES SUCH AS THE EQUIPMENT REGULATOR.
