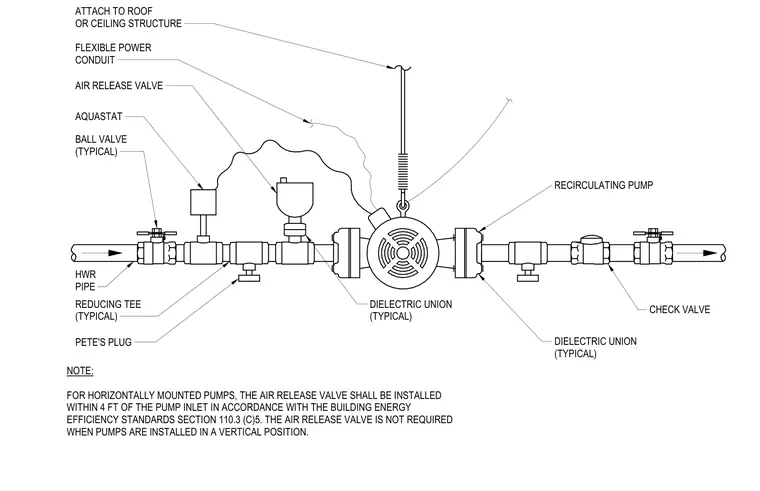

A commercial hot water return pipe connects to a recirculating pump via dielectric unions and reducing tees with Pete's plugs. Ball valves and check valves isolate the pump assembly, while an aquastat and air release valve mount near the inlet. Flexible power conduit attaches to the roof or ceiling structure. For horizontally mounted pumps, the air release valve installs within four feet of the pump inlet per building energy efficiency standards, whereas vertical installations omit the air release valve.
RECIRCULATING PUMP CHECK VALVE DIELECTRIC UNION (TYPICAL) DIELECTRIC UNION (TYPICAL) PETE'S PLUG REDUCING TEE (TYPICAL) HWR PIPE BALL VALVE (TYPICAL) AQUASTAT AIR RELEASE VALVE FLEXIBLE POWER CONDUIT ATTACH TO ROOF OR CEILING STRUCTURE NOTE: FOR HORIZONTALLY MOUNTED PUMPS, THE AIR RELEASE VALVE SHALL BE INSTALLED WITHIN 4 FT OF THE PUMP INLET IN ACCORDANCE WITH THE BUILDING ENERGY EFFICIENCY STANDARDS SECTION 110.3 (C)5. THE AIR RELEASE VALVE IS NOT REQUIRED WHEN PUMPS ARE INSTALLED IN A VERTICAL POSITION.
