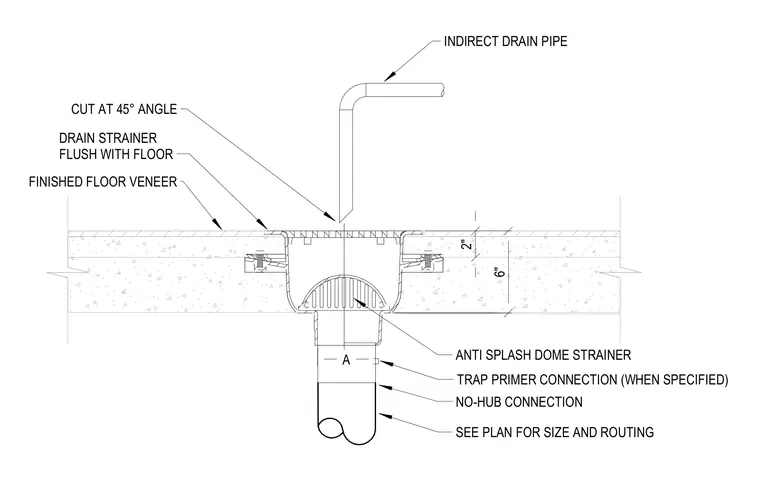

An indirect drain pipe feeds into a floor sink with its discharge end cut at a forty-five degree angle above the rim. A drain strainer is set flush with the finished floor veneer over the structural slab. Below the strainer, an anti-splash dome strainer sits above the outlet connection. The sink body connects to the waste piping via a no-hub connection and includes an optional trap primer connection as specified.
A 2" 6" INDIRECT DRAIN PIPE SEE PLAN FOR SIZE AND ROUTING NO-HUB CONNECTION TRAP PRIMER CONNECTION (WHEN SPECIFIED) DRAIN STRAINER FLUSH WITH FLOOR FINISHED FLOOR VENEER ANTI SPLASH DOME STRAINER CUT AT 45° ANGLE
