This rooftop duct support assembly is suspended beneath the roof deck using vertical hanger rods and Unistrut channels measuring 1-3/8 inches by 1-5/8 inches in 12 gauge. The duct is secured with a 1-inch wide, 16-gauge strap and mounted on roof paver support posts. Neoprene-steel washers are provided at connections, and Unistrut is screwed onto the paver support plate.

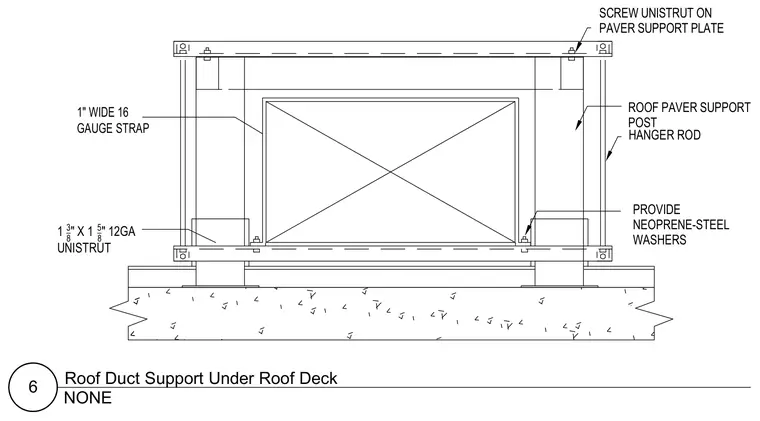

PROVIDE NEOPRENE-STEEL WASHERS 1" WIDE 16 GAUGE STRAP 1 3_ 8 " X 1 5_ 8 " 12GA UNISTRUT HANGER ROD SCREW UNISTRUT ON PAVER SUPPORT PLATE ROOF PAVER SUPPORT POST NONE 6 Roof Duct Support Under Roof Deck
