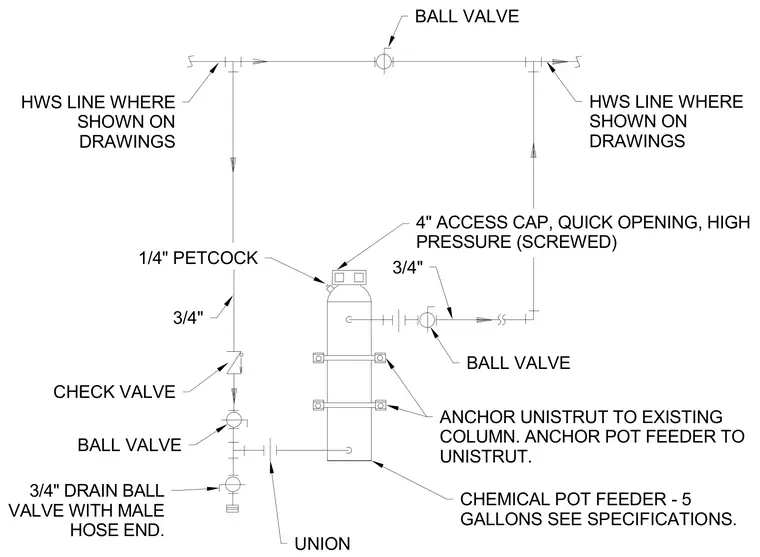

A five-gallon chemical pot feeder ties into a hot water supply line. The five-gallon pot feeder is anchored to an existing column using Unistrut channels. The system incorporates three-quarter-inch ball valves, a check valve, unions, a quarter-inch petcock, and a three-quarter-inch drain ball valve with a male hose end. A four-inch quick-opening high-pressure screwed access cap is provided on the pot feeder.
HWS LINE WHERE SHOWN ON DRAWINGS 3/4" BALL VALVE 3/4" DRAIN BALL VALVE WITH MALE HOSE END. CHECK VALVE UNION CHEMICAL POT FEEDER - 5 GALLONS SEE SPECIFICATIONS. ANCHOR UNISTRUT TO EXISTING COLUMN. ANCHOR POT FEEDER TO UNISTRUT. BALL VALVE 3/4" HWS LINE WHERE SHOWN ON DRAWINGS 4" ACCESS CAP, QUICK OPENING, HIGH PRESSURE (SCREWED) 1/4" PETCOCK BALL VALVE
