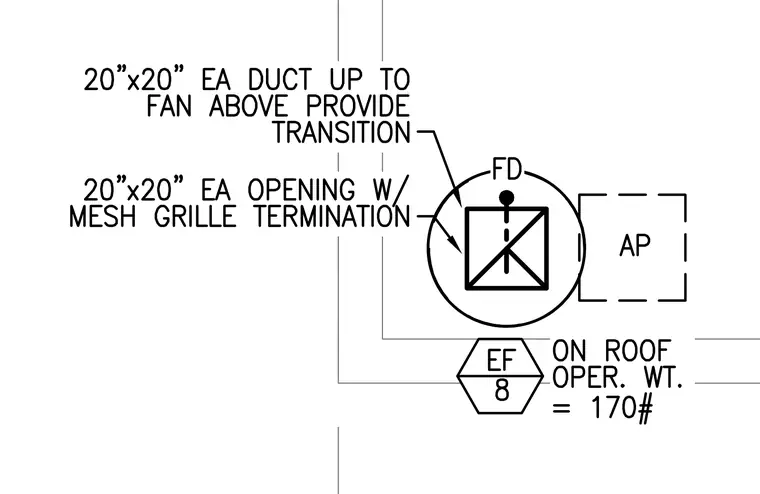

A twenty by twenty inch exhaust duct connects upward to the fan above with a required transition piece. The termination consists of a twenty by twenty inch opening with a mesh grille. The equipment is designated as exhaust fan number eight located on the roof, with an operating weight of one hundred seventy pounds, accompanied by an adjacent access panel.
