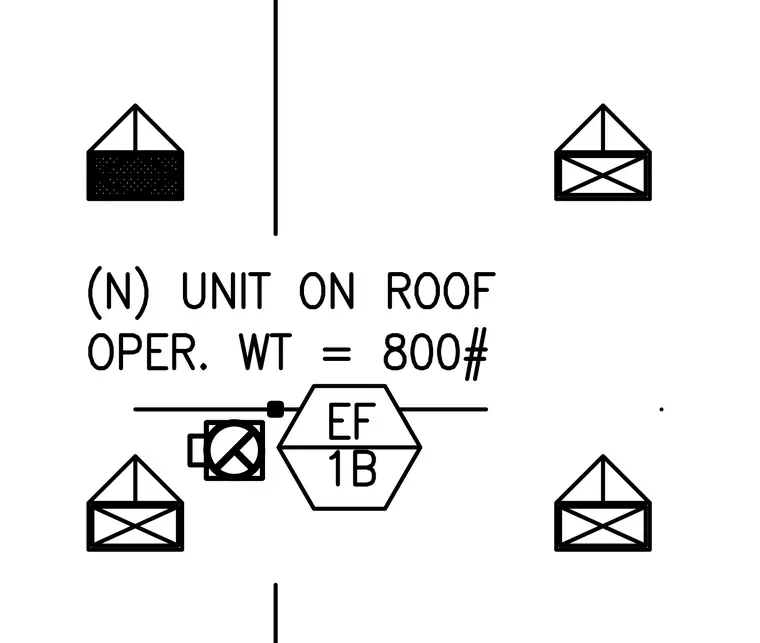

This mechanical drawing symbol designates a new exhaust fan unit mounted on the roof, identified by equipment tag EF 1B. The accompanying text notes an operating weight of 800 pounds to assist with structural load coordination. Various graphical symbols surround the tag callout.
