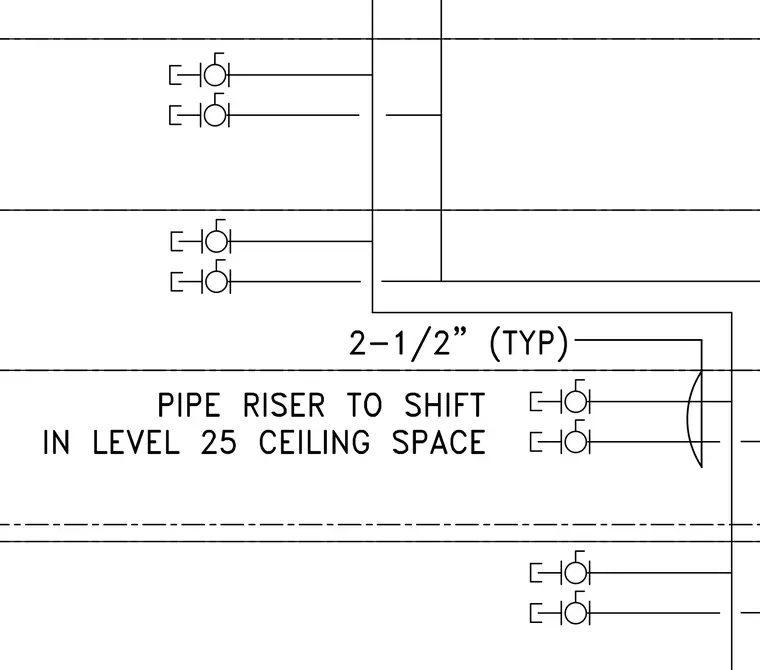

A vertical mechanical pipe riser shifts horizontally within the level twenty-five ceiling space by two and one-half inches typical. Branch connections tie into the main riser at multiple floor levels above and below the offset.
