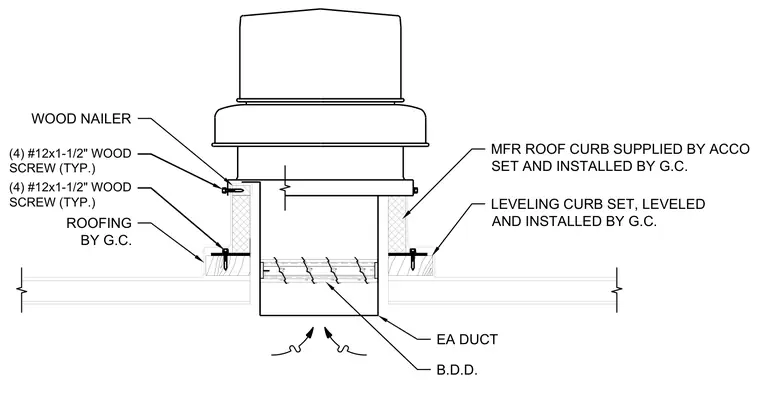

An exhaust fan curb is set upon a wood nailer secured to the roof assembly with four #12 by 1-1/2-inch wood screws on each side. The leveling curb is supplied by the manufacturer and installed by the general contractor over existing roofing. A backdraft damper and exhaust duct pass through the center of the curb assembly.
LEVELING CURB SET, LEVELED AND INSTALLED BY G.C. MFR ROOF CURB SUPPLIED BY ACCO SET AND INSTALLED BY G.C. EA DUCT B.D.D. WOOD NAILER ROOFING BY G.C. (4) #12x1-1/2" WOOD SCREW (TYP.) (4) #12x1-1/2" WOOD SCREW (TYP.)
