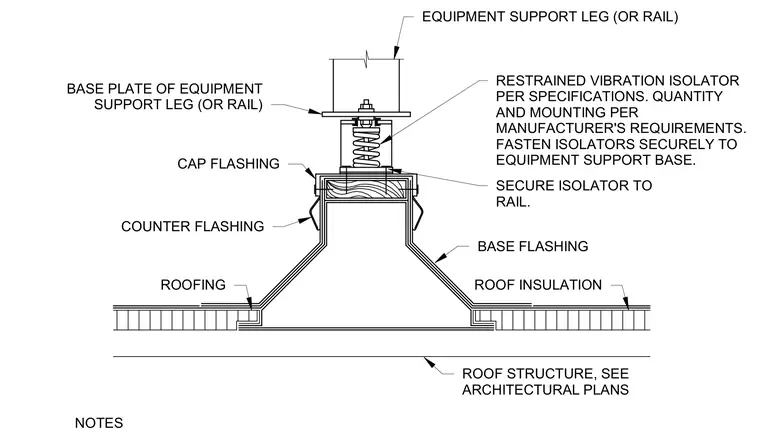

An equipment support leg or rail sits upon a base plate fastened to a restrained vibration isolator. The isolator mounts securely to the equipment support base and rail above a roof curb assembly. Base flashing and cap flashing protect the insulated roof structure, supplemented by counter flashing. The entire assembly integrates with the roof structure sized per architectural plans.
BASE FLASHING CAP FLASHING ROOFING COUNTER FLASHING ROOF INSULATION EQUIPMENT SUPPORT LEG (OR RAIL) BASE PLATE OF EQUIPMENT SUPPORT LEG (OR RAIL) ROOF STRUCTURE, SEE ARCHITECTURAL PLANS RESTRAINED VIBRATION ISOLATOR PER SPECIFICATIONS. QUANTITY AND MOUNTING PER MANUFACTURER'S REQUIREMENTS. FASTEN ISOLATORS SECURELY TO EQUIPMENT SUPPORT BASE. SECURE ISOLATOR TO RAIL. NOTES
