Mechanical · M-ZHPSJ

Hot Water Boiler Hookup Detail

Materials

Elements

About this detail

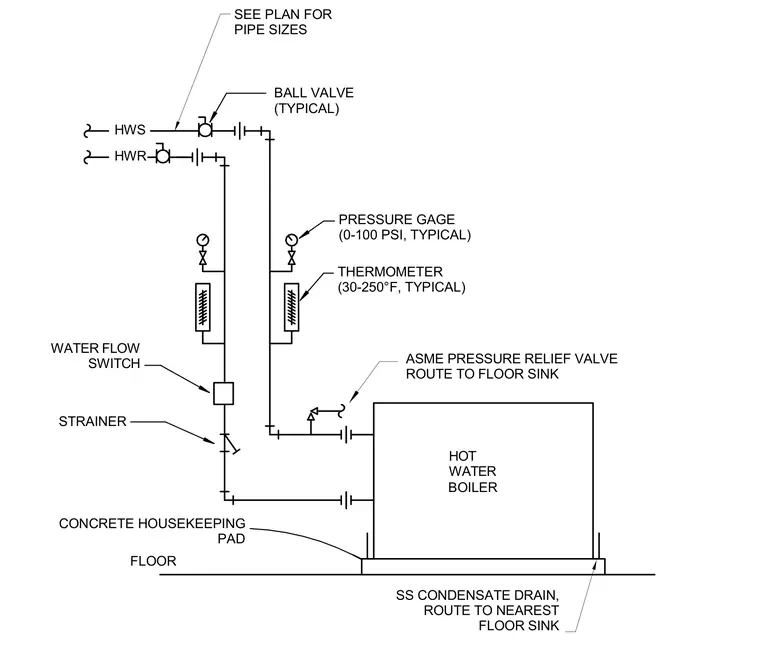

A hot water boiler sits atop a concrete housekeeping pad on the floor, featuring a stainless steel condensate drain routed to the nearest floor sink. Hot water supply and return piping connect to the boiler with unions and ball valves sized per plan. The system includes an inline strainer, a water flow switch, a 0-100 PSI pressure gauge, and a 30-250 degree Fahrenheit thermometer on the typical flow paths. An ASME pressure relief valve is installed and routed to a floor sink.
