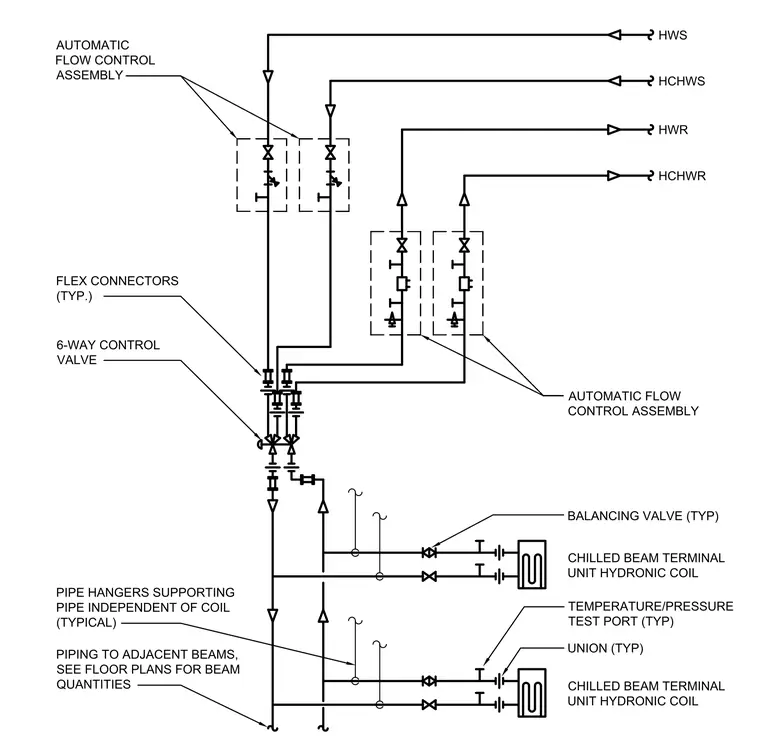

The schematic details the hydronic piping connections for chilled beam terminal unit hydronic coils, featuring a central six-way control valve connected to hot water supply, hot water return, chilled water supply, and chilled water return lines. Automatic flow control assemblies with balancing valves and temperature/pressure test ports are installed on the branches. Flexible connectors and unions are included at the control valve connections for ease of maintenance and vibration isolation. Pipe hangers support the piping independently of the coil units to prevent excessive loading on the equipment.
BALANCING VALVE (TYP) CHILLED BEAM TERMINAL UNIT HYDRONIC COIL CHILLED BEAM TERMINAL UNIT HYDRONIC COIL PIPE HANGERS SUPPORTING PIPE INDEPENDENT OF COIL (TYPICAL) UNION (TYP) TEMPERATURE/PRESSURE TEST PORT (TYP) AUTOMATIC FLOW CONTROL ASSEMBLY HWS HCHWS HWR HCHWR AUTOMATIC FLOW CONTROL ASSEMBLY 6-WAY CONTROL VALVE PIPING TO ADJACENT BEAMS, SEE FLOOR PLANS FOR BEAM QUANTITIES FLEX CONNECTORS (TYP.)
