Radiant Floor Heating Zone Piping Diagram with Three-Way Valve

Elements

About this detail

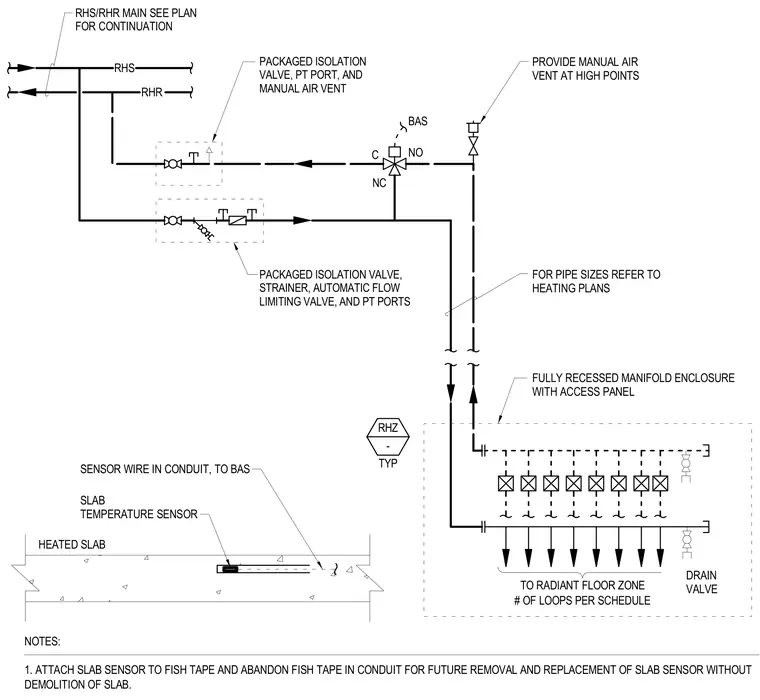

The radiant heating supply main connects to a packaged isolation valve, pressure-temperature port, and manual air vent before feeding a three-way control valve. The return line incorporates a packaged isolation valve, strainer, automatic flow limiting valve, and pressure-temperature ports. A manual air vent is positioned at high points in the piping leading down to a fully recessed manifold enclosure with an access panel. The manifold distributes water to the radiant floor loops per schedule and includes a drain valve. A slab temperature sensor is embedded in the heated concrete slab and wired through conduit to the building automation system, with the sensor attached to a fish tape abandoned in the conduit for future removal and replacement.
