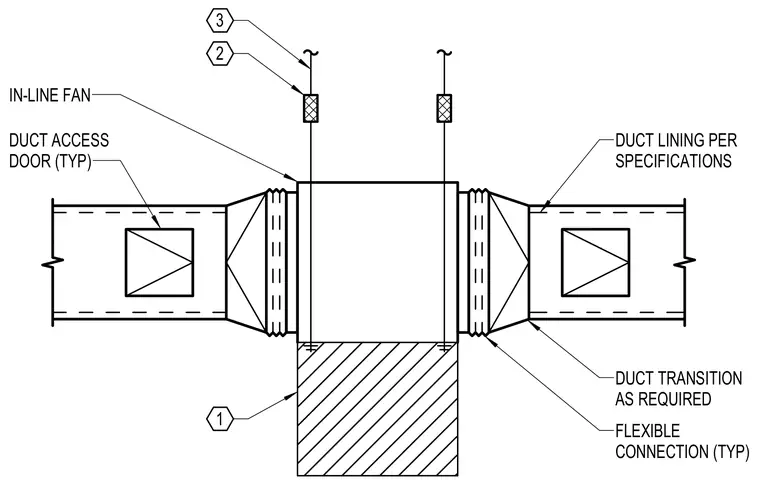

An in-line fan is installed in the duct run with flexible connections on both the inlet and discharge sides to isolate vibration. Duct transitions are used as required to match duct sizing, and internal duct lining is provided per specifications. A typical duct access door is installed upstream for maintenance access. The fan assembly is supported overhead by hanger rods and vibration isolators.
DUCT ACCESS DOOR (TYP) IN-LINE FAN DUCT LINING PER SPECIFICATIONS DUCT TRANSITION AS REQUIRED FLEXIBLE CONNECTION (TYP) 1 2 3
