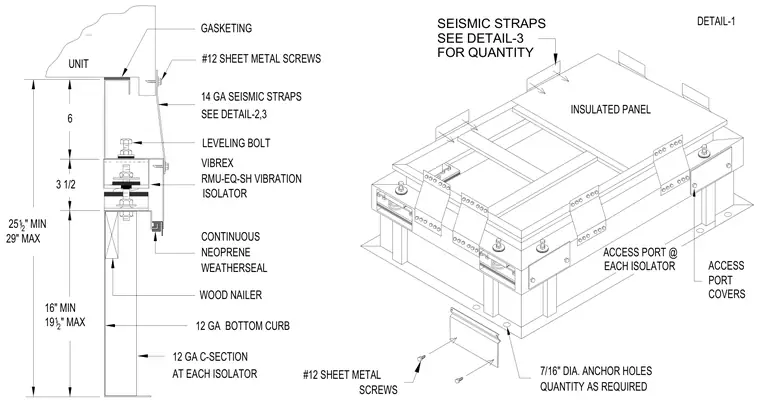

This rooftop equipment curb assembly rests on a 12-gauge bottom curb supported by 12-gauge C-sections at each isolator location. A wood nailer provides a structural base beneath a continuous neoprene weatherseal. Vibrex RMU-EQ-SH vibration isolators with leveling bolts sit between the curb and the mechanical unit. Fourteen-gauge seismic straps secure the unit using number twelve sheet metal screws. Gasketing provides a tight seal at the interface with the rooftop unit.
SEISMIC STRAPS SEE DETAIL-3 FOR QUANTITY DETAIL-1 INSULATED PANEL #12 SHEET METAL SCREWS 7/16" DIA. ANCHOR HOLES QUANTITY AS REQUIRED EACH ISOLATOR ACCESS PORT @ ACCESS COVERS PORT 3 1/2 6 GASKETING 12 GA BOTTOM CURB WEATHERSEAL CONTINUOUS RMU-EQ-SH VIBRATION LEVELING BOLT WOOD NAILER NEOPRENE ISOLATOR VIBREX SEE DETAIL-2,3 #12 SHEET METAL SCREWS 14 GA SEISMIC STRAPS 25 1 /2 " MIN 29" MAX 12 GA C-SECTION AT EACH ISOLATOR UNIT 16" MIN 19 1 /2 " MAX
