Mechanical · M-ZBM5K

Water Softener

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Bracing Drainage Anchors / Embeds

Connections

Embed Plate

About this detail

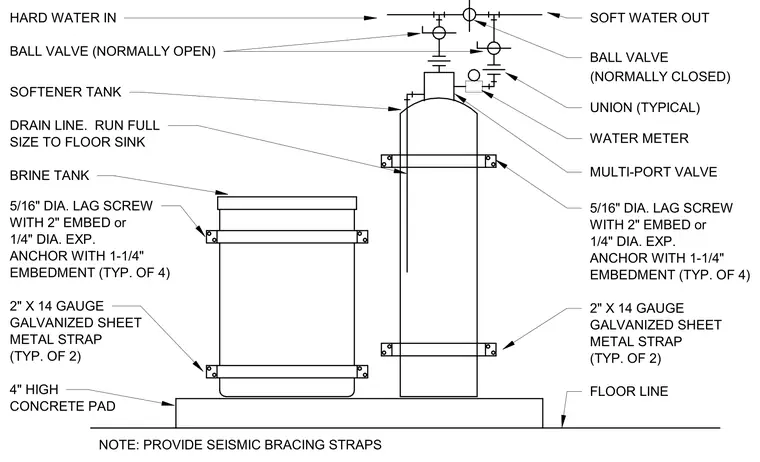

The water softener tank and brine tank rest upon a four-inch high concrete pad above the floor line, anchored with two-inch by fourteen-gauge galvanized sheet metal straps secured by typically four quarter-inch diameter expansion anchors with one-and-a-quarter-inch embedment or five-sixteenths-inch diameter lag screws with two-inch embedment. The plumbing assembly includes hard water inlet lines, a normally open ball valve, a multi-port valve, a water meter, unions, and a soft water outlet line with a normally closed ball valve. A drain line runs full size from the softener tank to a floor sink, and seismic bracing straps are provided per the installation note.
