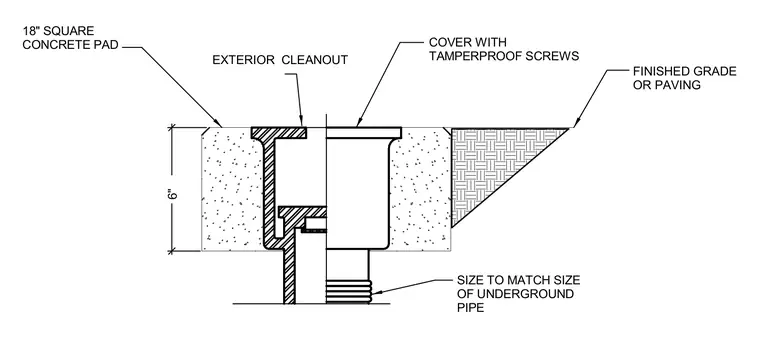

An exterior cleanout connects to an underground pipe with a sizing matching the pipe diameter. The cleanout features a cover secured with tamperproof screws flush with the top surface. The entire assembly is embedded in an eighteen inch square concrete pad having a thickness of six inches. The top of the concrete pad aligns flush with the surrounding finished grade or paving.
6" SIZE TO MATCH SIZE OF UNDERGROUND PIPE EXTERIOR CLEANOUT COVER WITH TAMPERPROOF SCREWS 18" SQUARE CONCRETE PAD FINISHED GRADE OR PAVING
