Mechanical · M-ZAH66

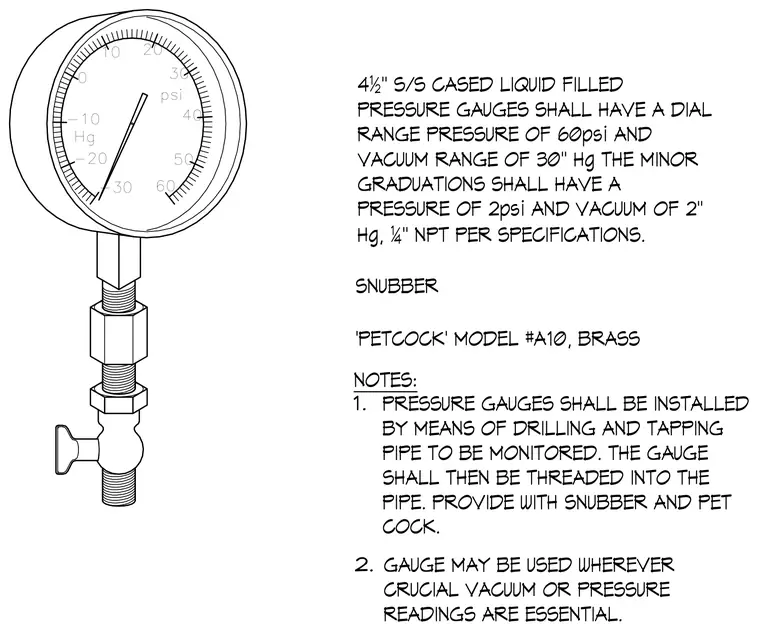

Liquid Filled Pressure Gauge Assembly with Snubber and Petcock

About this detail

A four and a half inch stainless steel cased liquid-filled pressure gauge features a dial range of sixty psi pressure and thirty inches of mercury vacuum, with minor graduations of two psi pressure and two inches of mercury vacuum, utilizing a one-quarter inch National Pipe Thread connection per specifications. The assembly connects to the monitored pipe through a snubber and a Model A10 brass petcock. Pressure gauges are installed by drilling and tapping the pipe to be monitored, allowing the gauge, snubber, and petcock to be threaded directly into the pipe wall.
