Suspension methods for rectangular, oval, and round HVAC ducts hung from an overhead metal roof deck with insulation and roofing. Support assemblies utilize one-inch wide by eighteen-gauge sheet metal hanger straps connected to one-inch by one-inch by twelve-inch long eighteen-gauge angles secured with number ten self-drilling Tek screws. Rectangular and oval ducts employ additional side screws for ducts exceeding twelve inches and twenty inches in depth. Round ducts up to twenty-inch diameter use single configurations while those twenty-two inches and larger require double hangers. A reference table specifies maximum duct dimensions, strap gauges, and maximum hanger spacings ranging from six to eight feet.

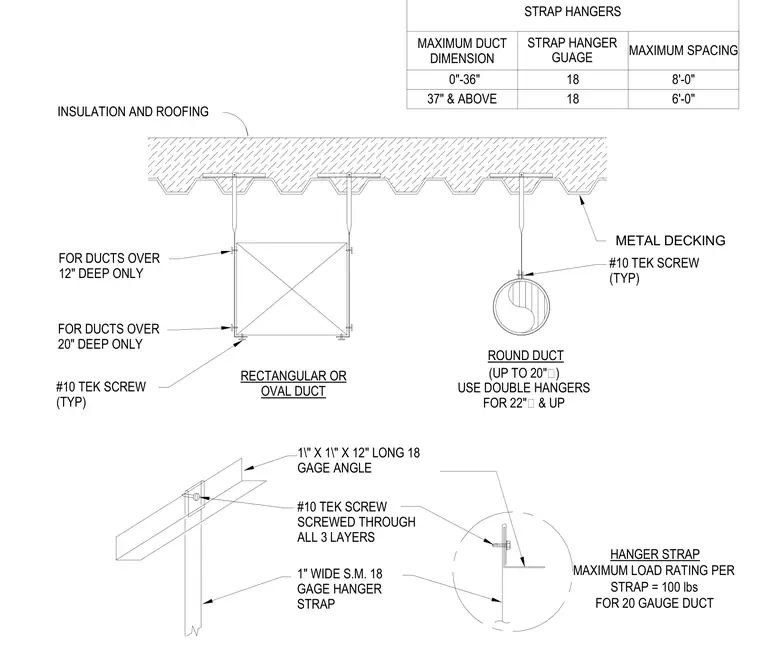

METAL DECKING OVAL DUCT RECTANGULAR OR ROUND DUCT (UP TO 20"∅) USE DOUBLE HANGERS FOR 22"∅ & UP INSULATION AND ROOFING #10 TEK SCREW (TYP) FOR DUCTS OVER 12" DEEP ONLY FOR DUCTS OVER 20" DEEP ONLY #10 TEK SCREW SCREWED THROUGH ALL 3 LAYERS 1" WIDE S.M. 18 GAGE HANGER STRAP 1\" X 1\" X 12" LONG 18 GAGE ANGLE #10 TEK SCREW (TYP) HANGER STRAP MAXIMUM LOAD RATING PER STRAP = 100 lbs FOR 20 GAUGE DUCT MAXIMUM DUCT DIMENSION STRAP HANGER GUAGE MAXIMUM SPACING STRAP HANGERS 0"-36" 37" & ABOVE 18 18 8'-0" 6'-0"
